端子線 T11-02LC02-H

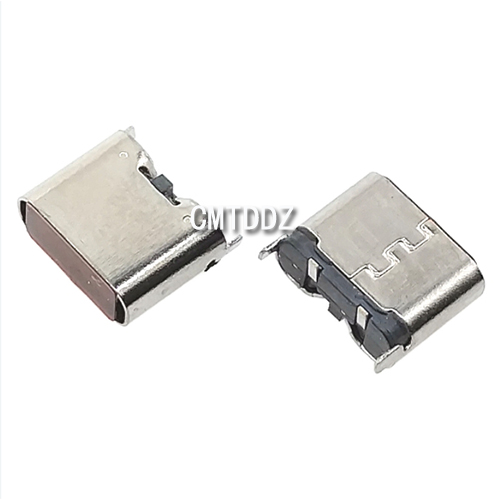

產品名稱 T11-02LC02-H
產品規格
Specification
FUNCTION: CONN USB C TYPE 2PIN DIP
CONTACT ARRANGEMENT:USB C Power
Electrical
MAXIMUM VOLTAGE: 3A FOR VBUS:
1.25A FOR GND PIN，0.25A FOR OTHER.
MAXIMUM CURRENT DC: 20V MAX
DIELECTRIC STRENGTH: 100V AC (1mn)
CONTACT RESISTANCE: ≤ 40 mΩ
INSULATION RESISTANCE: ≥ 100 MΩ
MECHANICAL
INSERTION：5-20N
EXTRACTION：8-20N AFTER TEST
DURABILITY：10,000 CYCLES
Environmental
OPERATING TEMPERATURE: -25?C to 85?C
FUNCTION: CONN USB C TYPE 2PIN DIP
CONTACT ARRANGEMENT:USB C Power
Electrical
MAXIMUM VOLTAGE: 3A FOR VBUS:
1.25A FOR GND PIN，0.25A FOR OTHER.
MAXIMUM CURRENT DC: 20V MAX
DIELECTRIC STRENGTH: 100V AC (1mn)
CONTACT RESISTANCE: ≤ 40 mΩ
INSULATION RESISTANCE: ≥ 100 MΩ
MECHANICAL
INSERTION：5-20N
EXTRACTION：8-20N AFTER TEST
DURABILITY：10,000 CYCLES
Environmental
OPERATING TEMPERATURE: -25?C to 85?C
